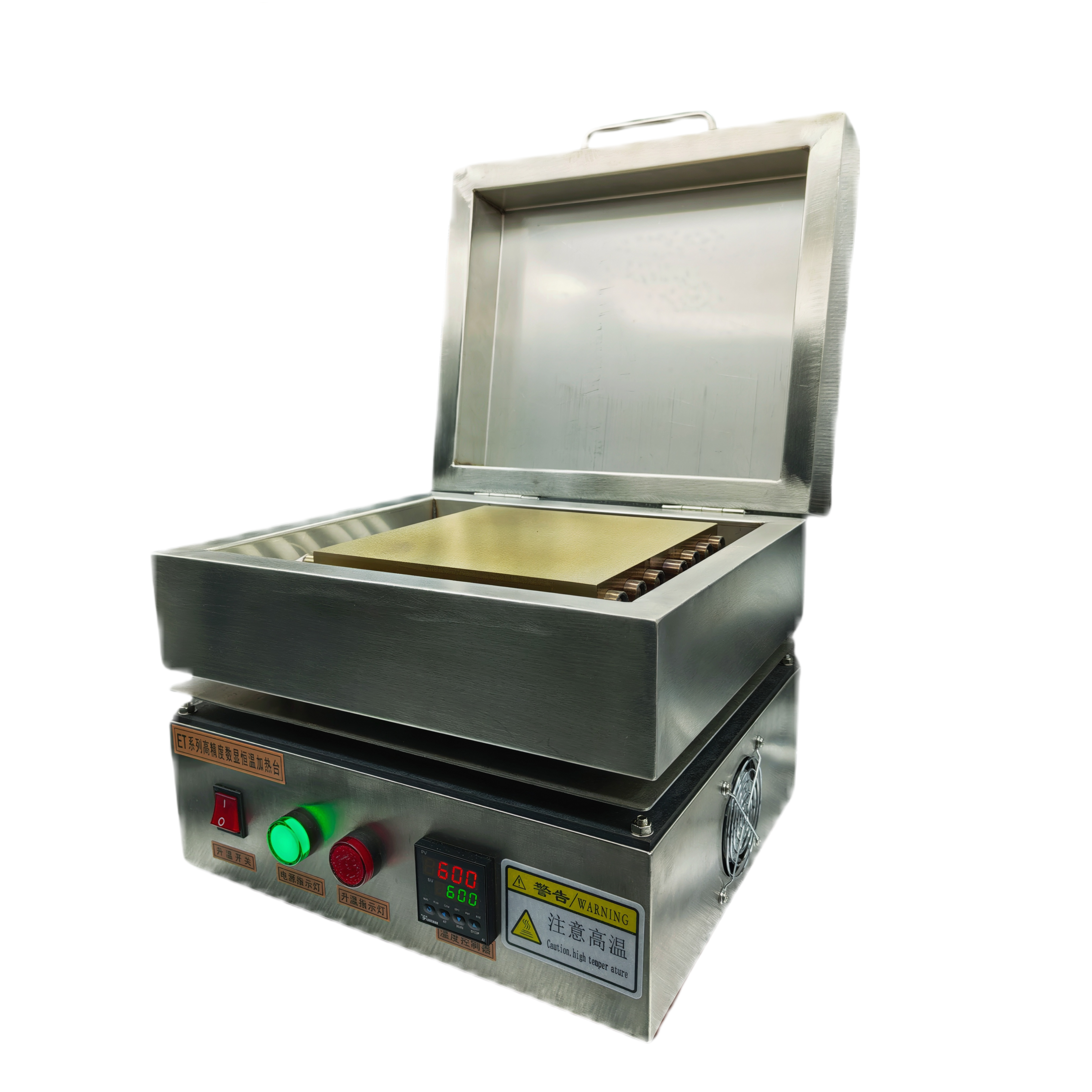

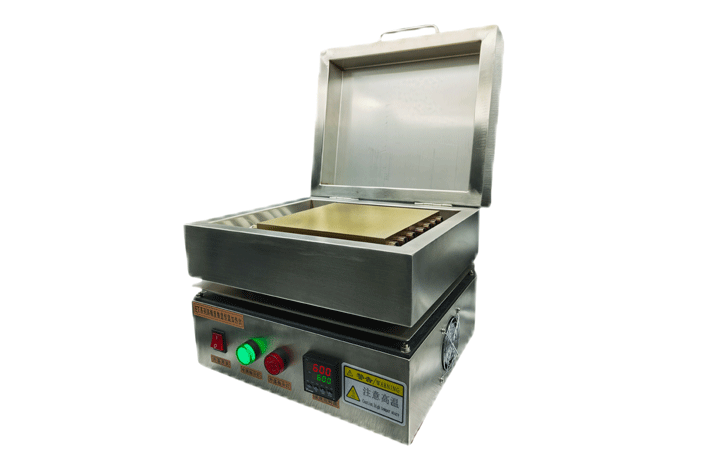

High temperature stainless steel heating plateprogrammable controller up to 600 ℃，The high-temperature heating plate can reach a maximum temperature of 600°C within 20 minutes. The upper tray is made of titanium with a total area of 280×200mm. The total area of the constant temperature zone is 230×160mm. Due to the special heat insulation treatment, the device can be placed on a heat-sensitive surface. The surrounding metal layer keeps the shell at the lowest temperature.

Technical Specifications:

1. The panel is made of 309S special stainless steel, corrosion-resistant and distortion-free;

2. Voltage: 220V, Current: 50Hz-60Hz;

3. Product dimensions: 350 x 300 x 250 (mm);

4. Heating plate area: 200 x 200 (mm);

5. Temperature control range: Room temperature to 600°C;

6. Temperature control accuracy: ±1%°C;

7. Panel temperature uniformity: ±1-2%°C;

8. Time setting: 1 minute to 999.9 minutes;

9. Power: 6.65 kW (30A);

10. Temperature control method: 30-program segment temperature control.

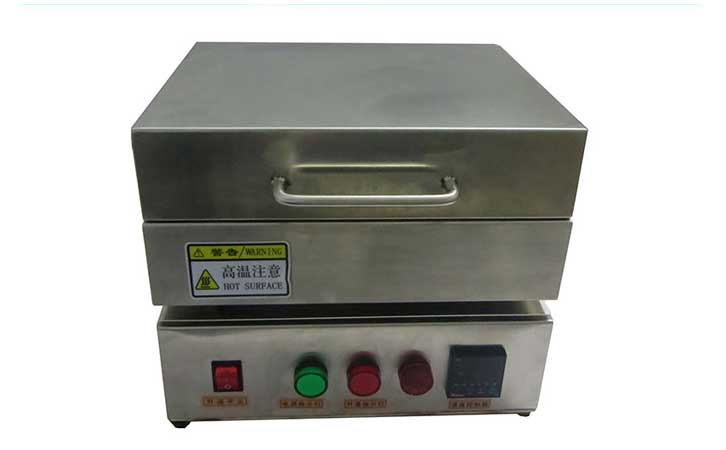

The insulated cover can reduce the heat to the minimum at any time and the heating time is the shortest. The gap between the sealing cover and the hot plate is kept at 30mm to ensure high temperature accuracy and high-intensity heating of smooth parts. The whole shell is made of 304stainless steel.

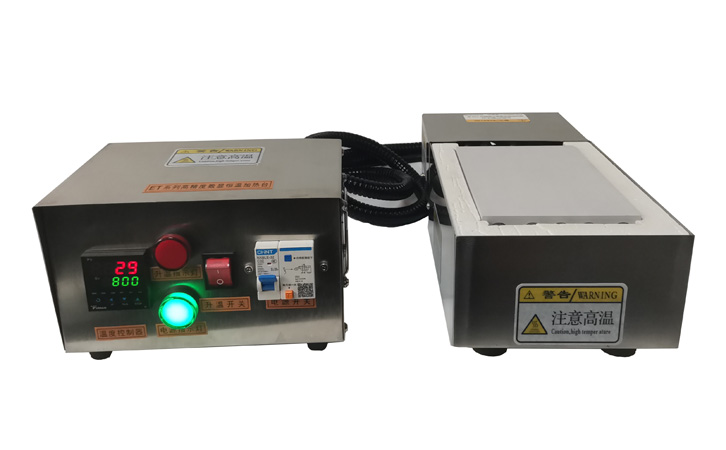

The temperature controller is connected by two plug-in cables.

The programmable controller can carry out the control of a specific program, including the heating stage, the holding stage and the cooling stage.

The input adopts a digital calibration system with accurate and stable measurement, supports a variety of thermocouple and thermal resistance specifications, and the highest resolution is 0.01 ℃.

Adopt advanced AI artificial intelligence PID adjustment algorithm, no overshoot, with auto-tuning (AT) function.

It adopts advanced modular structure and provides abundant output specifications, which can widely meet the needs of various applications, with fast delivery and easy maintenance.

Up to 30 sections of programs can be set up and can run in cycles. The user-friendly design of the operation method is easy to learn and use.

Allows self-editing operation authority and interface to form “customized” own instrument.

Universal 100-240VAC input range switching power supply or 24VDC power supply, and has a variety of panels and appearance sizes for selection.

The anti-interference performance meets the electromagnetic compatibility (EMC) requirements under severe industrial conditions.

Optionally, the heating table can be equipped with an additional built-in cooling plate. This feature permits cooling processes to be accelerated with liquids or even compressed air. This feature requires a separate cooling unit or compressed air source (provided by customer).

High-temperature heating platform application area :

Medical industry

Semiconductor chip industry

automotive industry

New energy industry

Consumer electronics industry

IC semiconductor field
