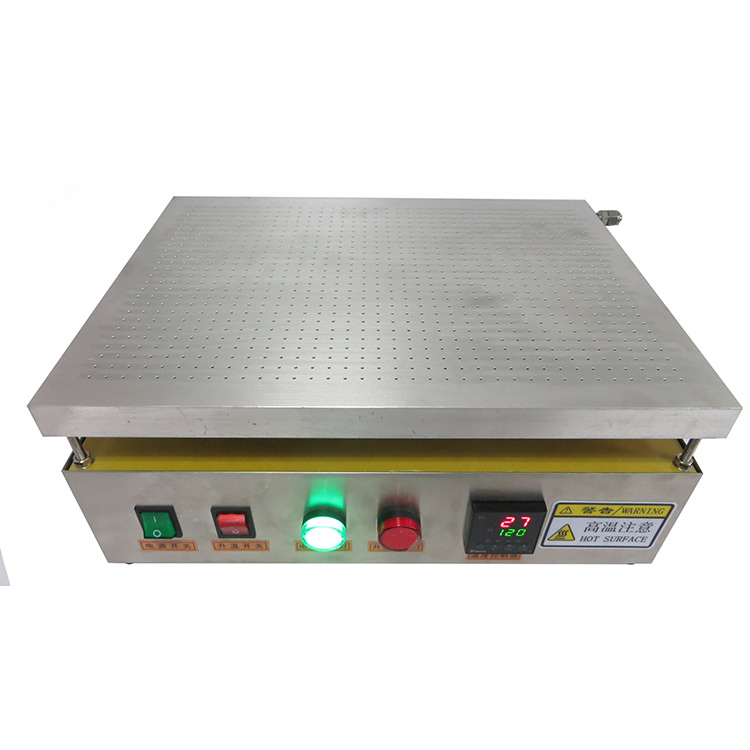

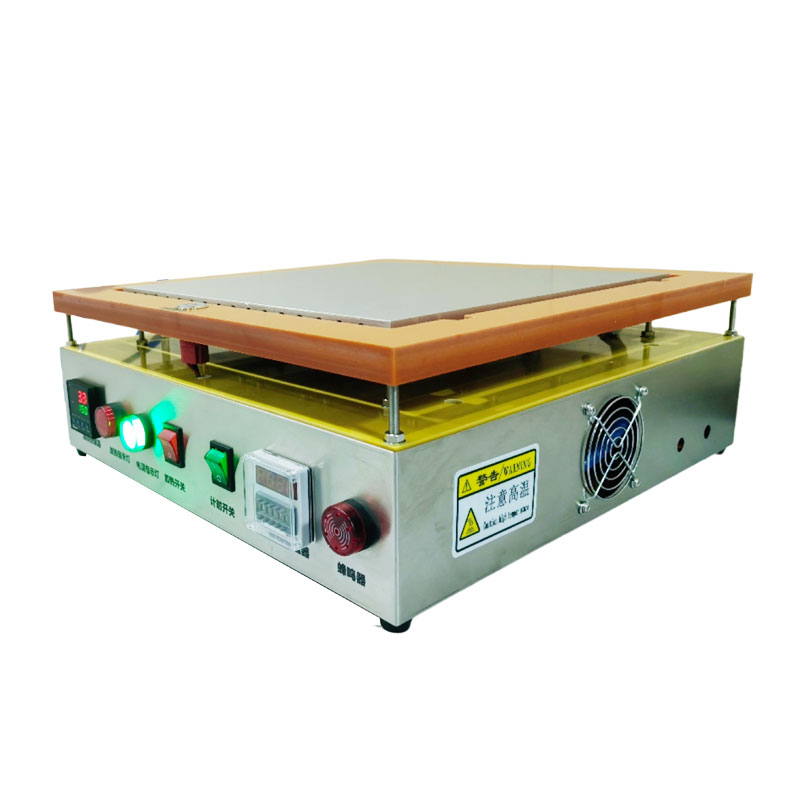

ET Series Vacuum Heating Adsorption Platform A novel vacuum adsorption platform based on a vacuum generator, comprising an electrical control box, heating plate, gas guide holes, filter, vacuum generator, and vacuum valve. Its structural feature is that the upper part of the electrical control box serves as the heating platform surface, with several uniformly arranged circular vacuum chambers on the platform surface.

　　I. Product Features of Vacuum Adsorption Heating Platform

1. Compact structural design with overall dimensions comparable to an electronic scale, facilitating placement in fume hoods or lab benches. Ideal for universities and research institutions.

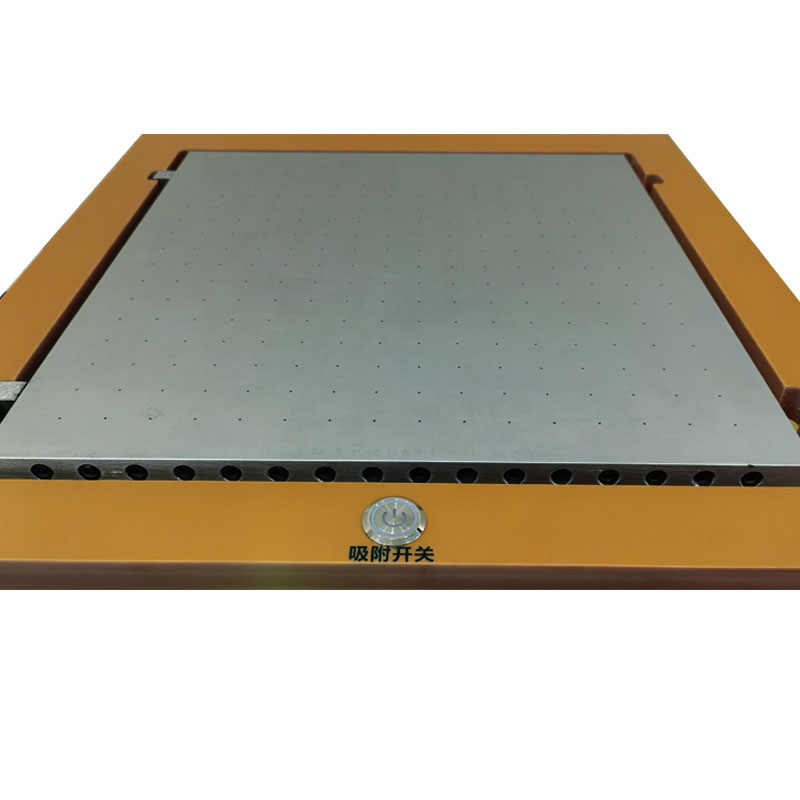

2. Rectangular or custom-shaped vacuum ports distributed across the heating surface, with diameters customizable per client requirements.

3. China’s first standalone adsorption platform integrating heating and vacuum functionality.

4. Two vacuum generation methods:

I. Internal vacuum generator creates negative pressure.

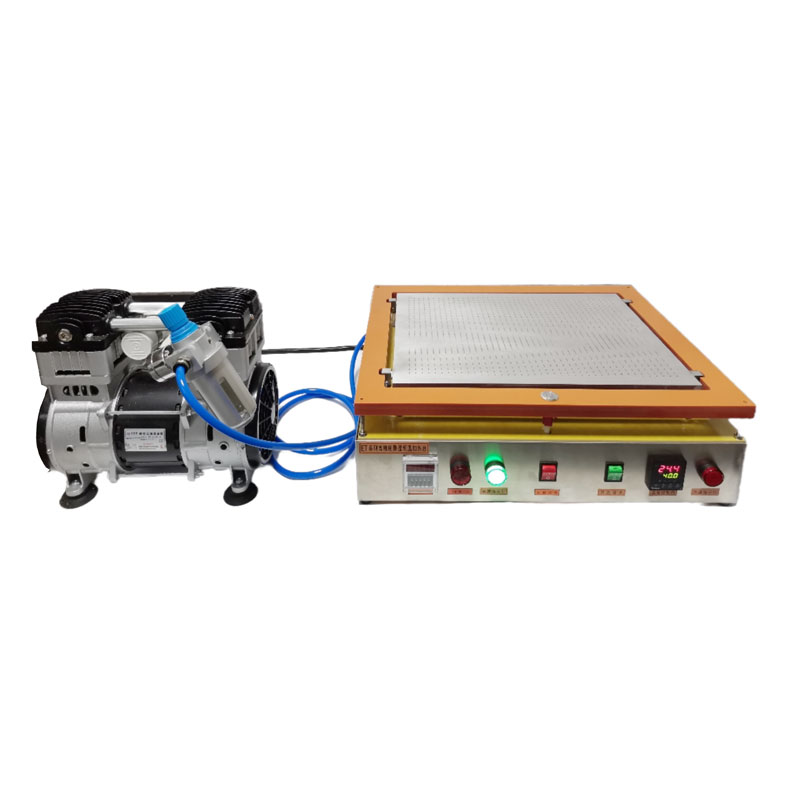

II. External interface for customer-supplied vacuum pump installation.

5. Platform dimensions adjustable per customer specifications.

6. Continuously variable vacuum level control.

7. Original “Xiamen Yudian” PID AI digital temperature controller ensures high precision, safe operation, and intuitive control.

8. Multi-channel independent heating control technology ensures uniform and consistent temperature distribution across the heating plate surface.

9. The entire panel is fabricated from aluminum alloy with integrated suction channels, preventing deformation. Features high thermal conductivity heating blocks for even heat distribution.

10. All product components and furnace casings are constructed from imported SUS304 stainless steel. Under non-specialized environments, it is completely resistant to paint peeling and rusting, maintaining an aesthetically pleasing appearance.

11. High-quality solid-state (SSR) relays with a lifespan 100 times longer than conventional contact relays.

12. Multiple high-quality stainless steel heating tubes for easy maintenance and low failure rate

　　II. Vacuum Adsorption Platform Technical Specifications:

The specifications listed above are standard for custom orders. The overall height of the unit is approximately 160mm. The temperature controller has a control accuracy of ±1°C, and the surface temperature difference of the platform is ±1~2%°C.

As all vacuum heating platforms are non-standard custom products, the above specifications are for reference only. Specific styles, dimensions, and functions must be specified by the customer, and our company will be responsible for the design and manufacturing.

Delivery is possible within 5~7 working days after the equipment style and functions are finalized.

　　III. Application Scope of Vacuum Adsorption Heating Platforms:

1. Electrode coating film fixation platform for fuel cell vacuum heating adsorption platforms

2. Work surface for FPC automatic adhesive tape applicators

3. Component rework for FPC flexible circuit boards

4. Disassembly of PT screens for mobile phones, tablets, etc.

5. Any process requiring vacuum suction and bottom heating.

Heating platform manufacturer specializing in vacuum suction heating platforms and digital display vacuum constant-temperature heating platforms. Vacuum-capable heating platforms are an enhanced variant of standard heating platforms: precision-machined surfaces with rectangular or custom-shaped vacuum ports distributed across the top. Port diameters can be customized to client specifications. Optional heat-resistant bakelite guardrails are available. Heating area dimensions can be customized based on provided drawings. We specialize in non-standard heating platforms, including vacuum-assisted heating tables and custom solutions. Place your order today!
